BatchTex

Best-in-class production equipment

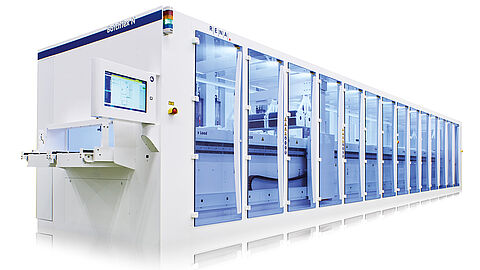

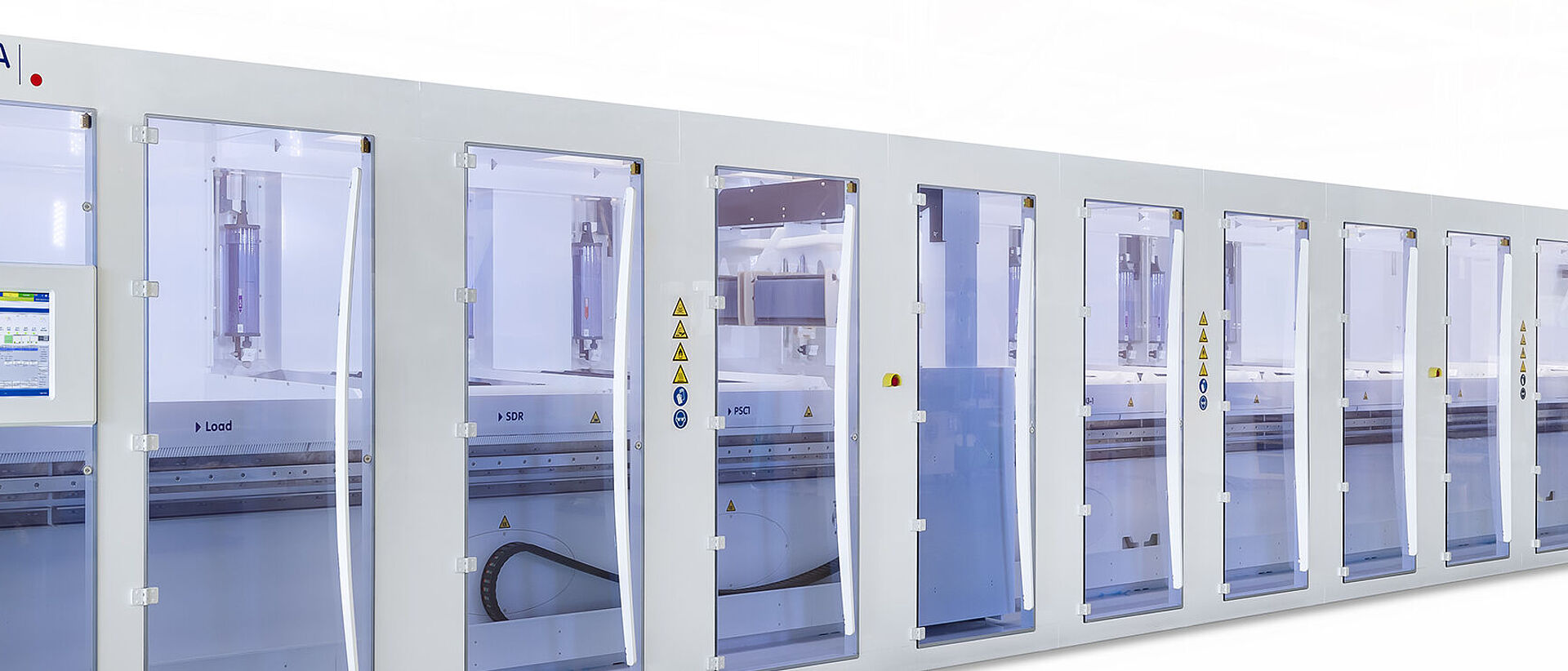

The RENA BatchTex N manufacturing equipment is the number one solution for an IPA-free, high throughput and best quality alkaline texturing process for monocrystalline silicon (mono-Si). The RENA monoTEX® process technology ensures a top-grade texturing result and is the RENA BatchTex is most used solution in the industry. The equipment is based on the RENA Batch N platform.

Features and Benefits

  • Fully automated saw damage removal and alkaline texturing for mono-Si in a Batch type process
  • RENA monoTEX® texturing process for highest quality and productivity
  • Throughput up to 8000 wafer/hour depending on configuration
  • Integrated cleaning, rinsing and drying of wafer
  • Long bath lifetime due to feed-and-bleed function

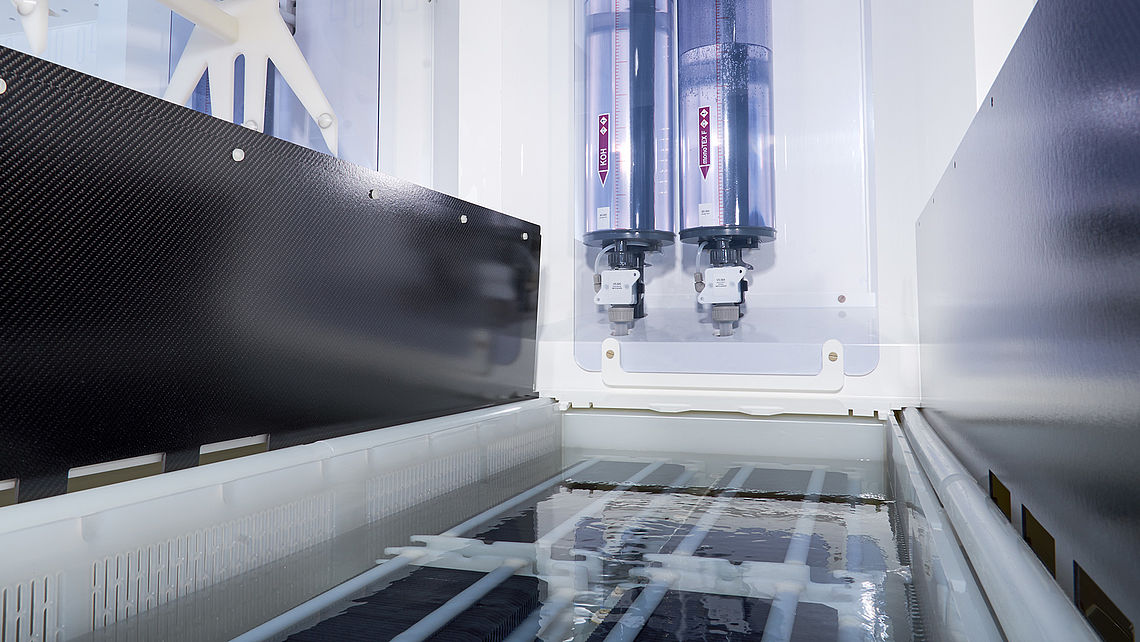

  • Tank-in-tank design for improved process homogeneity and reduced space requirement

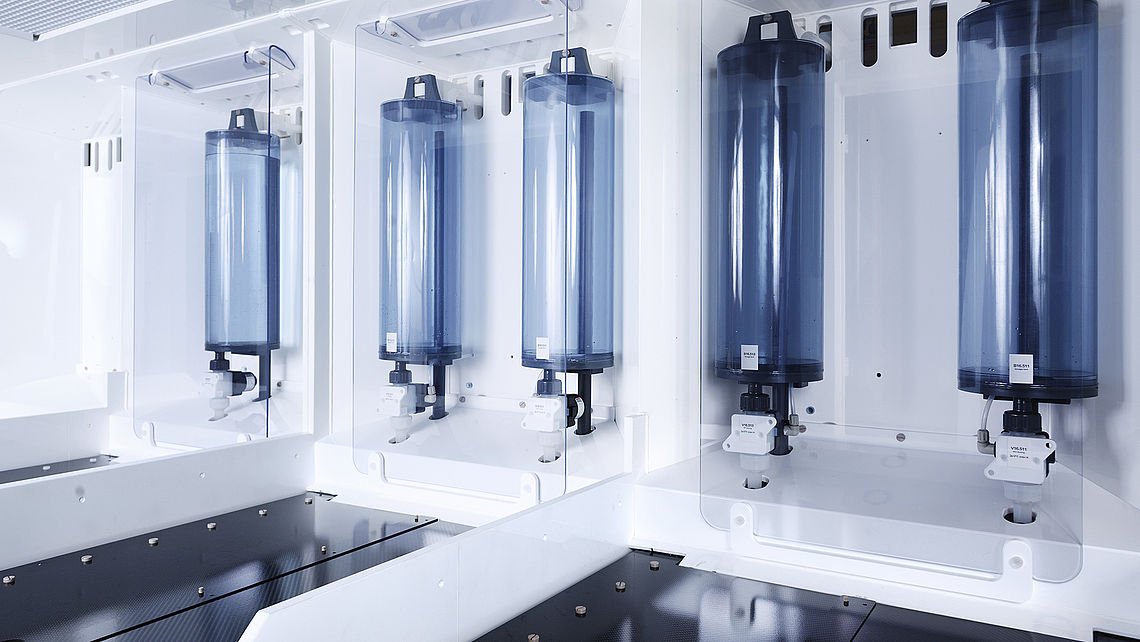

  • Best-in-class dosing system for accurate and constant bath composition
  • Uses downholder-free carrier
  • Lowest breakage rate in industry
  • Easy maintenance
  • Available as BatchTex N400 (400 wafer per bath), N200 (200 wafer per bath) or N50 (50 wafer per bath)

Options

  • Adaption for thin wafer down to 100 µm
  • Adapted version for silicon heterojunction (SHJ) available
  • Weighing scale: automated etch loss measurement
  • MES interface (SECS/GEM)
  • Load and Unload Extension for buffering carriers
  • Media cabinet for chemical supply
  • Waste pump station for chemical drain / waste water
  • Filter fan units (“Flowboxes”)
  • Sensors for process control (e.g. pH, conductivity)
